H20 Beam
The H20 Beam is a strong and reliable I-beam made for tough formwork jobs in civil and industrial construction. It’s designed to handle heavy loads with ease, making it a great choice for building walls, columns, and slabs. Made from high quality northern spruce and durable birch plywood, it offers long lasting performance while staying stable and accurate on site.
Designed for repeated use in slab, wall, and column formwork systems, H20 Beam combines high load bearing capacity with low weight for efficient onsite handling.

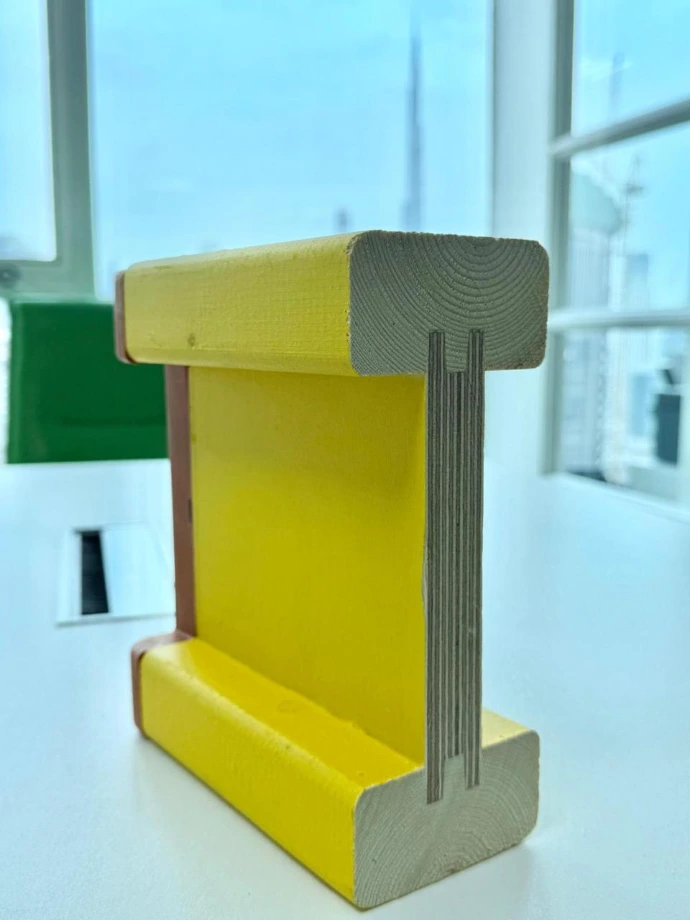

Northern spruce timber flanges and birch plywood web
200 × 80 mm with 40 mm flanges
Waterproof coating and protected ends
Applications
- Slab formwork systems
- Wall and column formwork
- Civil and residential building construction
- Industrial monolithic projects
Key Benefits
- High durability and bioresistance: Impregnated with a premium Tikkurila (Finland) primer, protecting against moisture, rot, and fungi

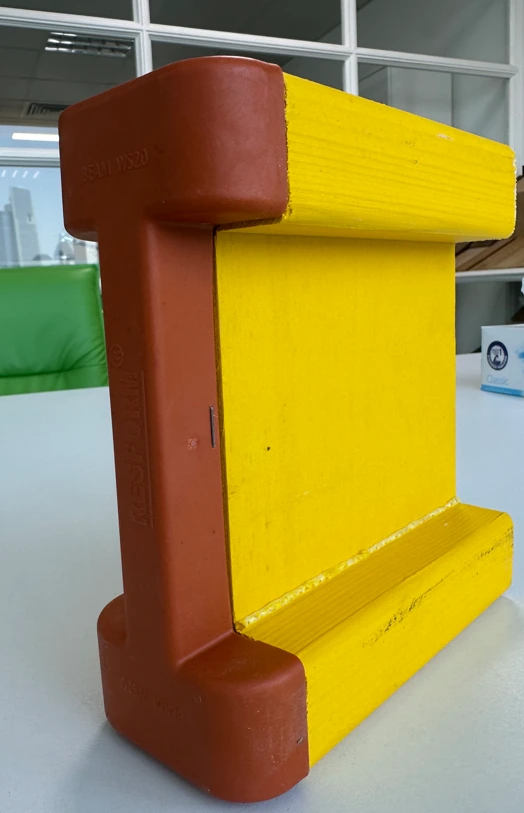

- Moisture protection: Beam ends are sealed with water-dispersion varnish or protective plastic caps to prevent moisture absorption in concrete walls
- Superior adhesion: Assembled using phenolic glue, a specially developed structural one component polyurethane adhesive for maximum reliability
Technical Specifications
Flanges: Spruce timber from northern regions
Web (stand): Water-resistant birch plywood, FSF emission class, thickness 24/27 mm
Structural adhesive: One component polyurethane adhesive
End protection: Water dispersion varnish or protective plastic caps
Sizes: Available in various standard lengths
